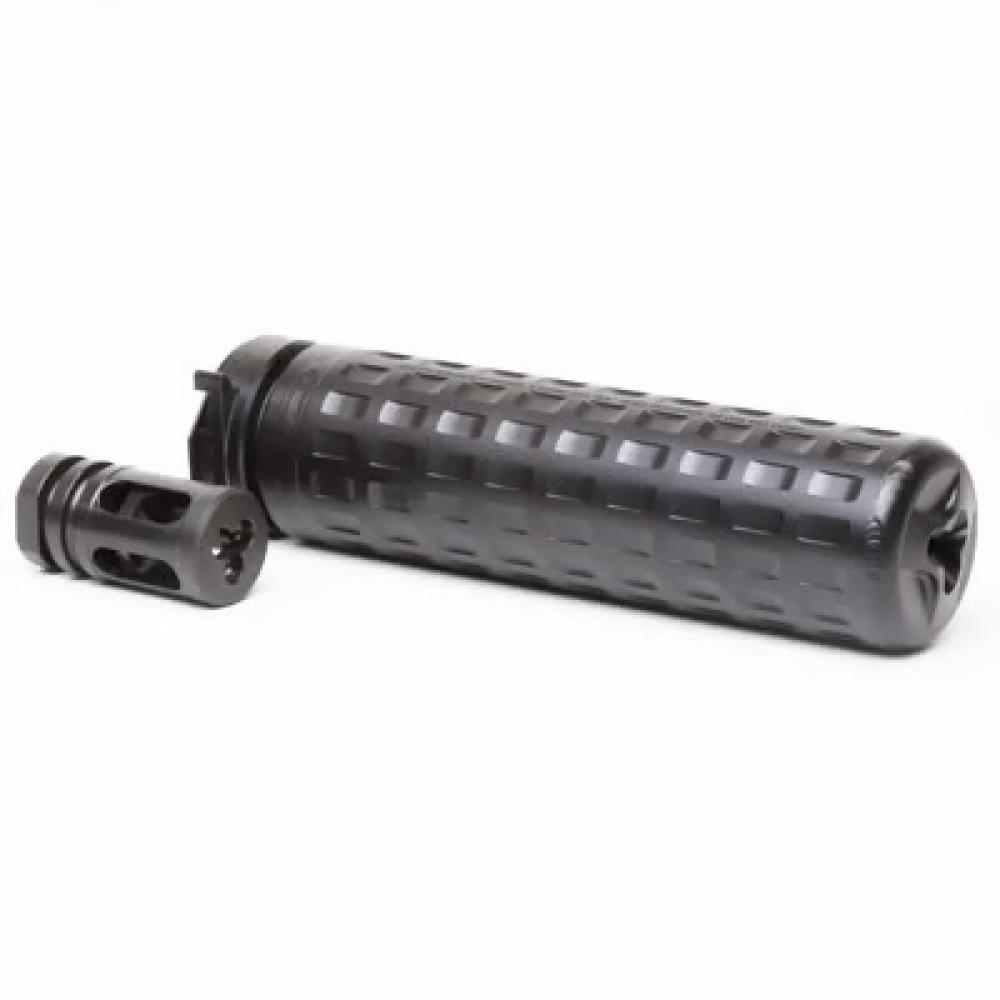

Griffin Armamen - M4SD-K
Forged in the fires of Mount Doom, the new M4SD K (Mod 3) begins life as approximately nine inches of 17-4 stainless, tool steel, bar stock. We have found 17-4 to provide markedly superior wear resistance, as compared to softer high nickel alloys of good reputation in industry. The heart of the M4SD K suppressor is a billet machined chassis (tube body), with integrated muzzle device bearing surfaces, which houses the internal components. The chassis provides a housing substantially stronger than the strongest tube materials currently available. Through extensive, costly and time intensive machining of the chassis, a tube structure of superior geometry is derived. The chassis is encompassed by a series of flutes surrounded by supporting structures affording enhanced strength to weight ratio- coupled with a 40% increase of surface area for unparalleled cooling. The M4SD K has surface area comparable to compact 7.62mm suppressors on the market. Reducing the internal operating temperature of the suppressor yields a superior product with a level of durability beyond that of current market options. Monolithic structure of the blast chamber and tube maximizes safety factor and provides maximum theoretical temperature transfer, allowing heat to normalize, mitigating the effects of erosion to baffle surfaces. Integrated at the request of elite tactical units, the included flash suppressor front cap further reduces flash signature in pursuit of suppressed superiority.
The M4SD-K uses a Patented high efficiency baffle technology. The patented baffling allows the M4SD-K to outperform other competing full size flagship suppressors. This high performance is coupled with low system backpressure for optimal reliability. The M4SD-K offers users a wide range of mounting options using our variety M4SD mounts and compatible A2 compensators.
UPC: 791154080979
MPN: GAM4SDK
Brand: Griffin Armament
Main Model: Griffin Armament Gate-Lok M4SD
Model: M4SD-K
Caliber: 223/5.56
Type: Suppressor
Weight: 14.5oz
Diameter: 1.5"
Overall Length: 5.75"
Materials: High Strength, High Temp, Corrosion Resistant 17-4PH Stainless Steel
Attachment: Griffin M4SD Mounts and USGI A2 spec compensators*
Finish: High Temp Cerakote
DB Attenuation: 31DB
*Silencer interface was designed to fit the USGI A2 government contract compliant muzzle devices. We cannot guarantee fitment with an A2 style compensator due to the broad tolerance range of both import and domestic devices from various brands. For guaranteed fitment, we recommend the purchase of a Griffin mount.
